Heatmap Demystified: Understanding the Critical Nuances

Making heatmap is an essential skill for any computational biologist, but most people don’t truly understand heatmaps. This tutorial will walk you through the critical nuances that can make or break your data interpretation.

The Golden Rule of Heatmaps

CRITICAL INSIGHT: The defaults of almost every heatmap function in R do hierarchical clustering FIRST, then scale the rows, then display the image. The scale parameter only affects color representation, NOT clustering!

This is perhaps the most misunderstood aspect of heatmaps and can lead to completely wrong biological interpretations.

Load the libraries

library(ComplexHeatmap)
library(stats)        # for base heatmap()
library(gplots)       # for heatmap.2()
library(circlize)     # for color functions

Create dummy data to illustrate key concepts

# Four genes with different expression patterns and scales
h1 <- c(10,20,10,20,10,20,10,20)  # High expression, oscillating pattern
h2 <- c(20,10,20,10,20,10,20,10)  # High expression, opposite oscillation
l1 <- c(1,3,1,3,1,3,1,3)          # Low expression, same pattern as h1
l2 <- c(3,1,3,1,3,1,3,1)          # Low expression, same pattern as h2

mat <- rbind(h1,h2,l1,l2)
colnames(mat) <- paste0("timepoint_", 1:8)
mat

#>    timepoint_1 timepoint_2 timepoint_3 timepoint_4 timepoint_5 timepoint_6
#> h1          10          20          10          20          10          20
#> h2          20          10          20          10          20          10
#> l1           1           3           1           3           1           3
#> l2           3           1           3           1           3           1
#>    timepoint_7 timepoint_8
#> h1          10          20
#> h2          20          10
#> l1           1           3
#> l2           3           1

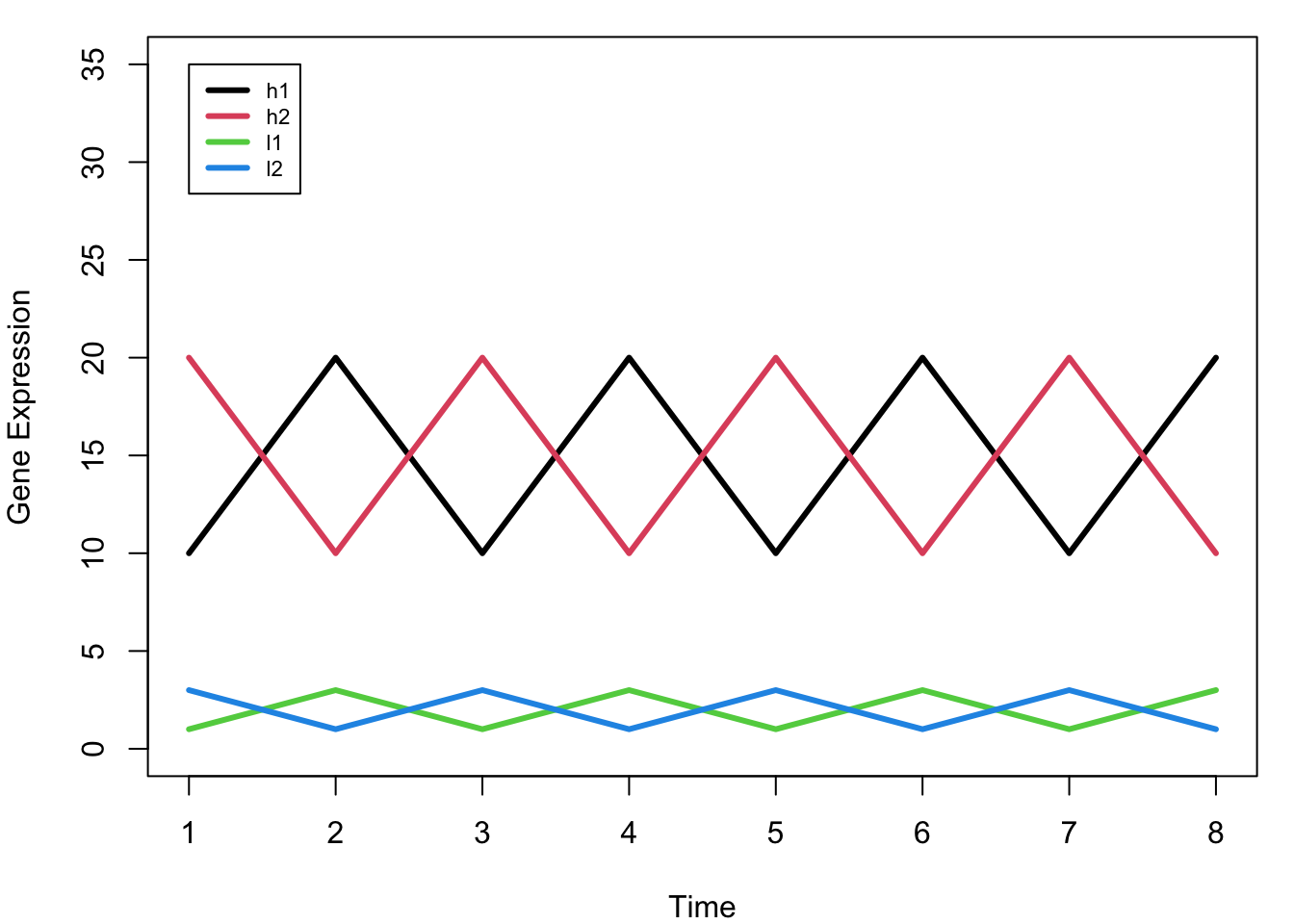

Visualize the expression patterns

par(mfrow = c(1,1), mar = c(4,4,1,1))
plot(1:8, rep(0,8), ylim = c(0,35), pch = "", xlab = "Time", ylab = "Gene Expression")

for (i in 1:nrow(mat)) {
  lines(1:8, mat[i,], lwd = 3, col = i)
}

legend(1, 35, rownames(mat), col = 1:4, lwd = 3, cex = 0.7)

Key Observation: Notice that h1 and l1 have the SAME pattern (just different scales), as do h2 and l2. Ideally, we want h1 and l1 to cluster together, and h2 and l2 to cluster together.

Understanding Distance and Clustering

Default Euclidean Distance

# Calculate pairwise distances using default Euclidean distance
d_euclidean <- dist(mat)
d_euclidean

#>           h1        h2        l1
#> h2 28.284271
#> l1 38.470768 40.496913
#> l2 40.496913 38.470768  5.656854

sqrt(sum((mat[1, ] -  mat[2,])^2))

#> [1] 28.28427

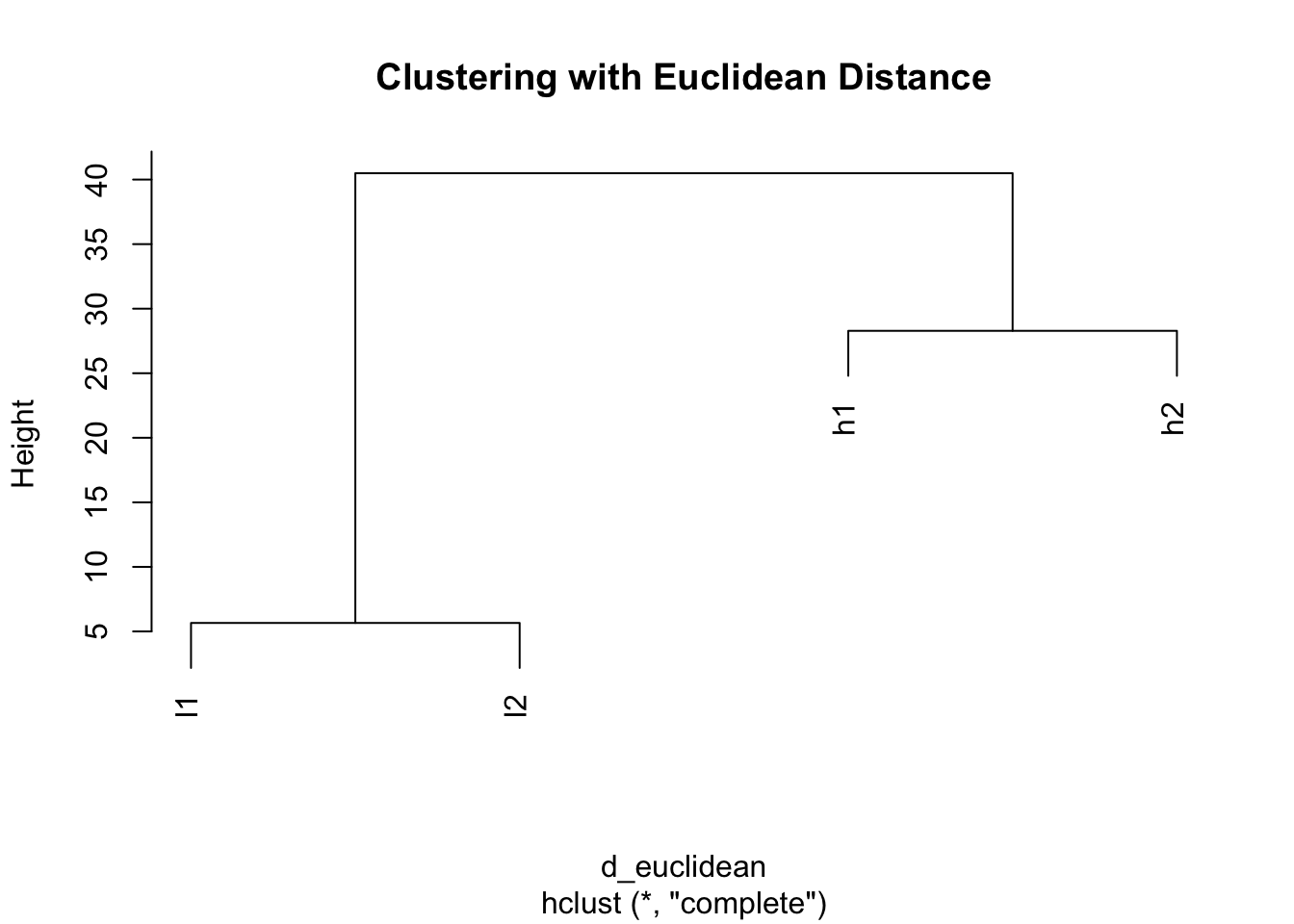

# Visualize the clustering based on Euclidean distance
plot(hclust(d_euclidean), main = "Clustering with Euclidean Distance")

Past versions of unnamed-chunk-6-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

Problem: With Euclidean distance, h1 clusters with h2 (both high values) and l1 clusters with l2 (both low values), ignoring the actual expression patterns!

The Scaling Dilemma: When and How to Scale

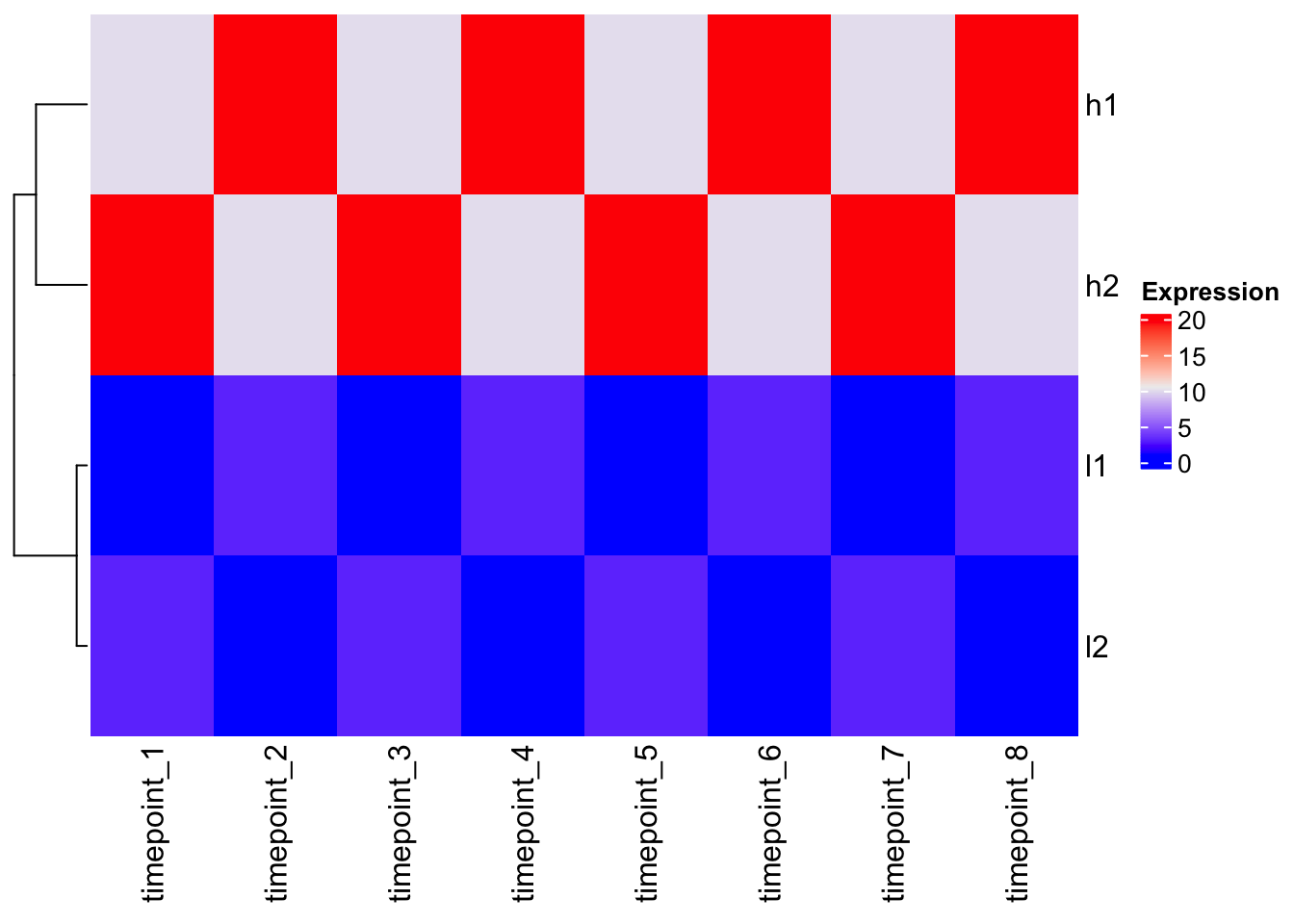

Making a basic heatmap

# ComplexHeatmap - no scaling by default
Heatmap(mat, cluster_columns = FALSE, name = "Expression")

Observation: The clustering follows the Euclidean distance pattern we saw above.

Scaling the data BEFORE clustering

# Scale rows (genes) - center and scale to unit variance
scaled_mat <- t(scale(t(mat)))
scaled_mat

#>    timepoint_1 timepoint_2 timepoint_3 timepoint_4 timepoint_5 timepoint_6
#> h1  -0.9354143   0.9354143  -0.9354143   0.9354143  -0.9354143   0.9354143
#> h2   0.9354143  -0.9354143   0.9354143  -0.9354143   0.9354143  -0.9354143
#> l1  -0.9354143   0.9354143  -0.9354143   0.9354143  -0.9354143   0.9354143
#> l2   0.9354143  -0.9354143   0.9354143  -0.9354143   0.9354143  -0.9354143
#>    timepoint_7 timepoint_8
#> h1  -0.9354143   0.9354143
#> h2   0.9354143  -0.9354143
#> l1  -0.9354143   0.9354143
#> l2   0.9354143  -0.9354143
#> attr(,"scaled:center")
#> h1 h2 l1 l2
#> 15 15  2  2
#> attr(,"scaled:scale")
#>       h1       h2       l1       l2
#> 5.345225 5.345225 1.069045 1.069045

# Now look at distances after scaling
d_scaled <- dist(scaled_mat)
d_scaled

#>          h1       h2       l1
#> h2 5.291503
#> l1 0.000000 5.291503
#> l2 5.291503 0.000000 5.291503

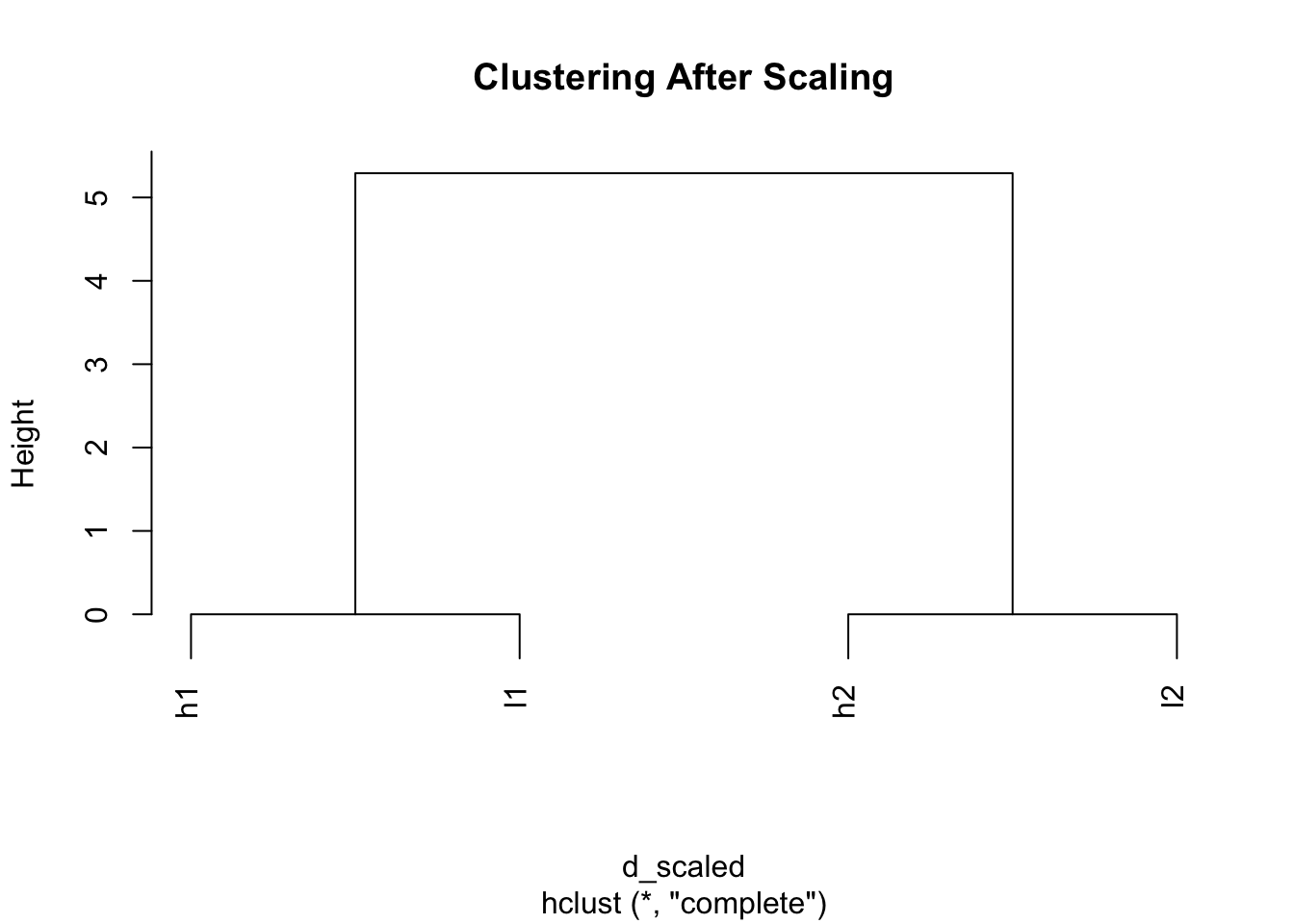

# Clustering after scaling
plot(hclust(d_scaled), main = "Clustering After Scaling")

Past versions of unnamed-chunk-10-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

Magic! Now h1 and l1 cluster together, and h2 and l2 cluster together because we’ve removed the scale differences and focused on patterns.

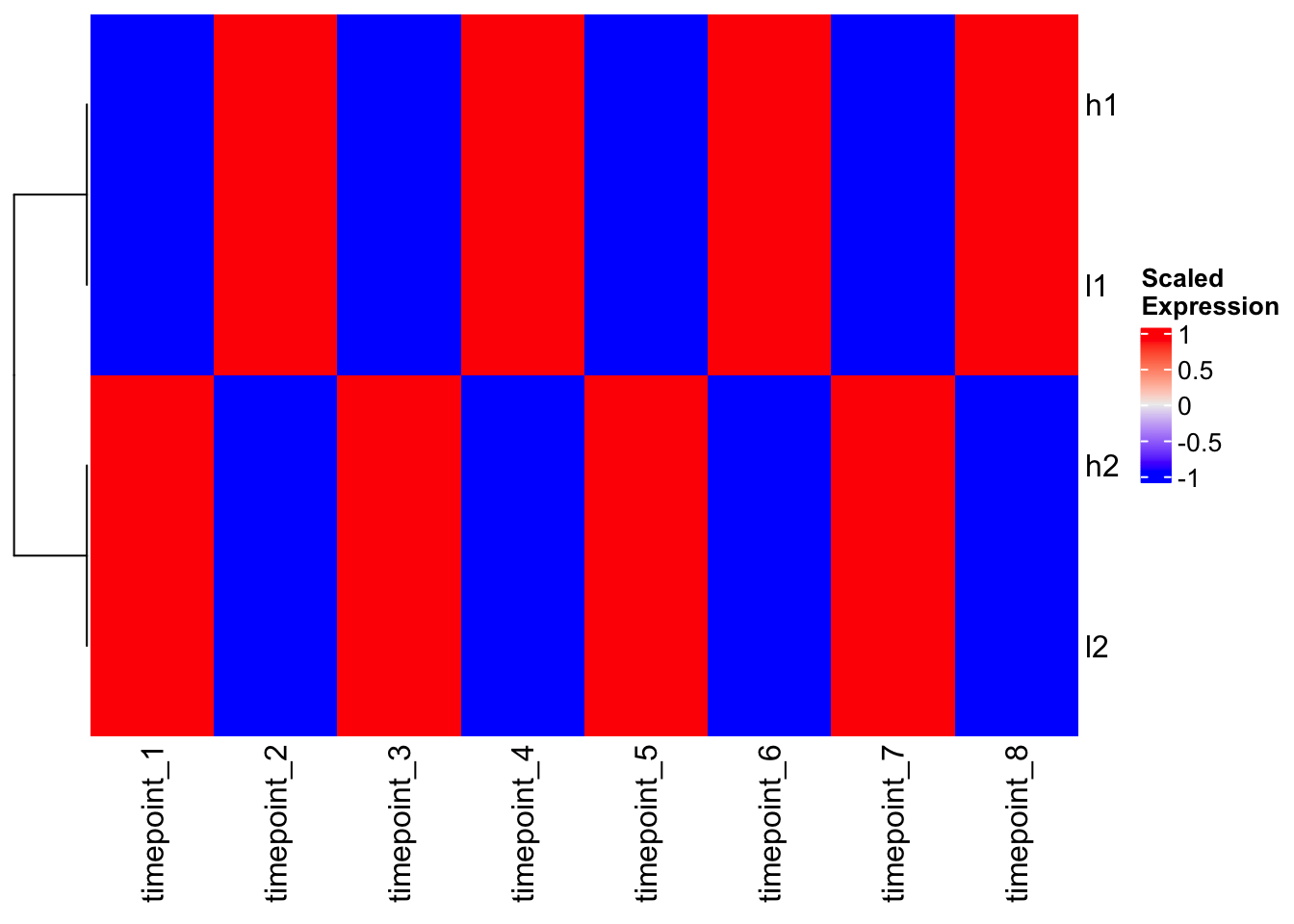

# Heatmap with pre-scaled data
Heatmap(scaled_mat, cluster_columns = FALSE, name = "Scaled\nExpression")

Alternative: Using Correlation-based Distance

Instead of scaling, we can use correlation-based distance to focus on patterns:

# Calculate correlation between genes
gene_cor <- cor(t(mat))
gene_cor

#>    h1 h2 l1 l2
#> h1  1 -1  1 -1
#> h2 -1  1 -1  1
#> l1  1 -1  1 -1
#> l2 -1  1 -1  1

# Use 1 - correlation as distance
d_correlation <- as.dist(1 - cor(t(mat)))
d_correlation

#>    h1 h2 l1
#> h2  2
#> l1  0  2
#> l2  2  0  2

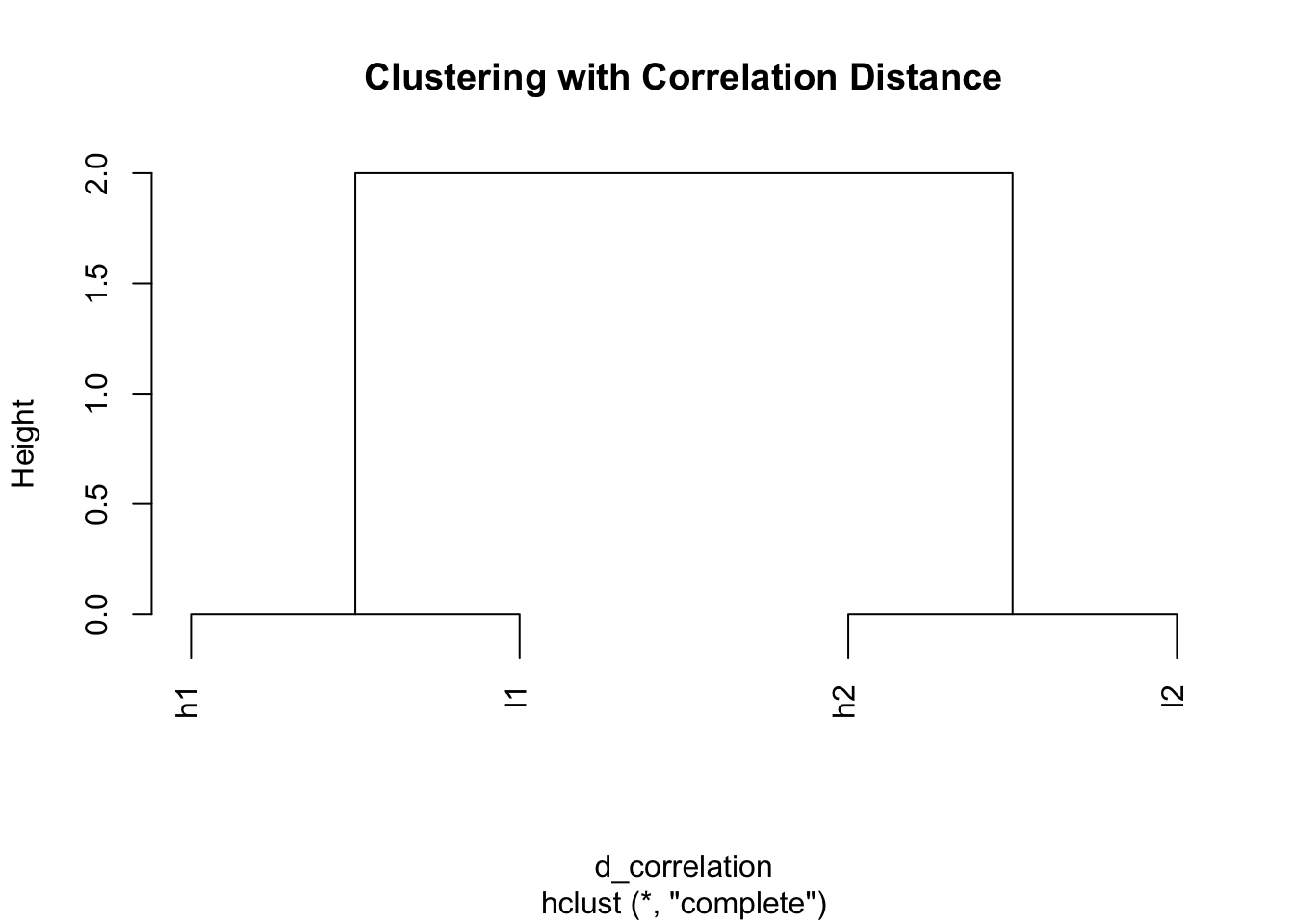

# Clustering with correlation distance
hc_cor <- hclust(d_correlation)
plot(hc_cor, main = "Clustering with Correlation Distance")

Past versions of unnamed-chunk-14-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

Perfect! Same result as scaling - genes with similar patterns cluster together.

Comparing Heatmap Functions

Base R heatmap() - DEFAULT: scale = “row”

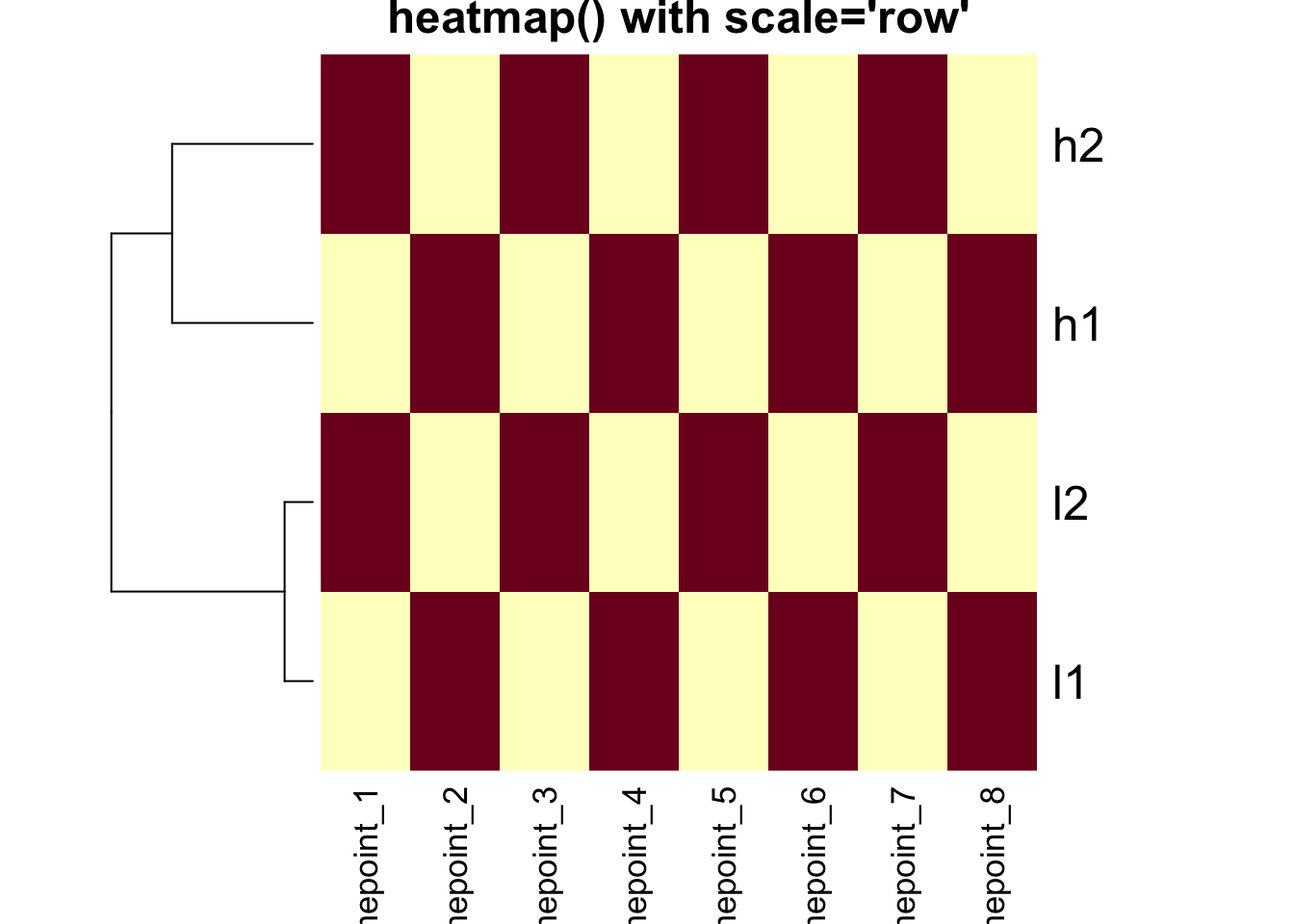

# Base heatmap with default scaling
heatmap(mat, Colv = NA, scale = "row", main = "heatmap() with scale='row'")

Past versions of unnamed-chunk-15-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

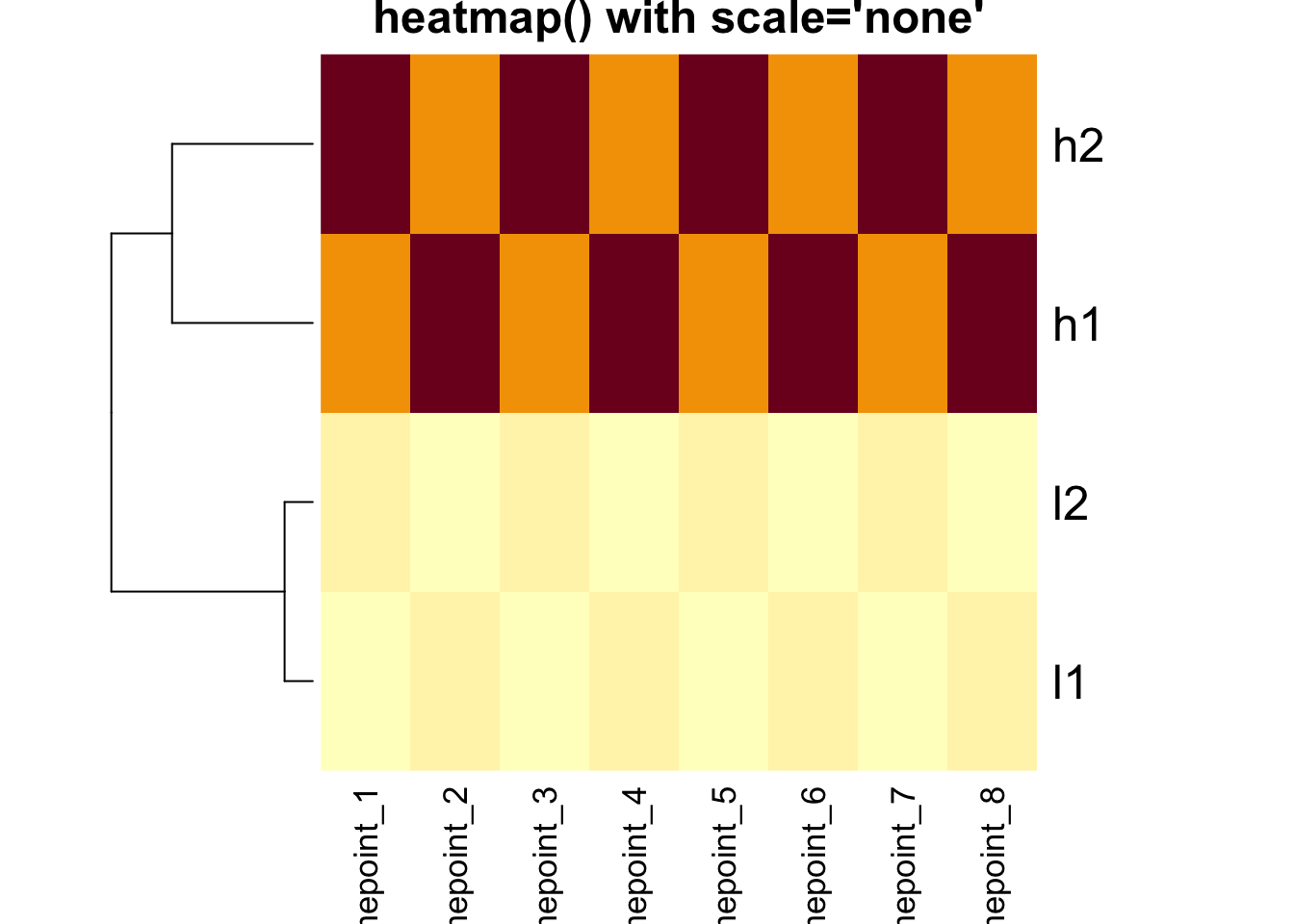

# Base heatmap without scaling
heatmap(mat, Colv = NA, scale = "none", main = "heatmap() with scale='none'")

Past versions of unnamed-chunk-16-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

Critical Point: The clustering is IDENTICAL in both heatmaps above! The scale parameter only affects the color representation.

gplots::heatmap.2() - DEFAULT: scale = “none”

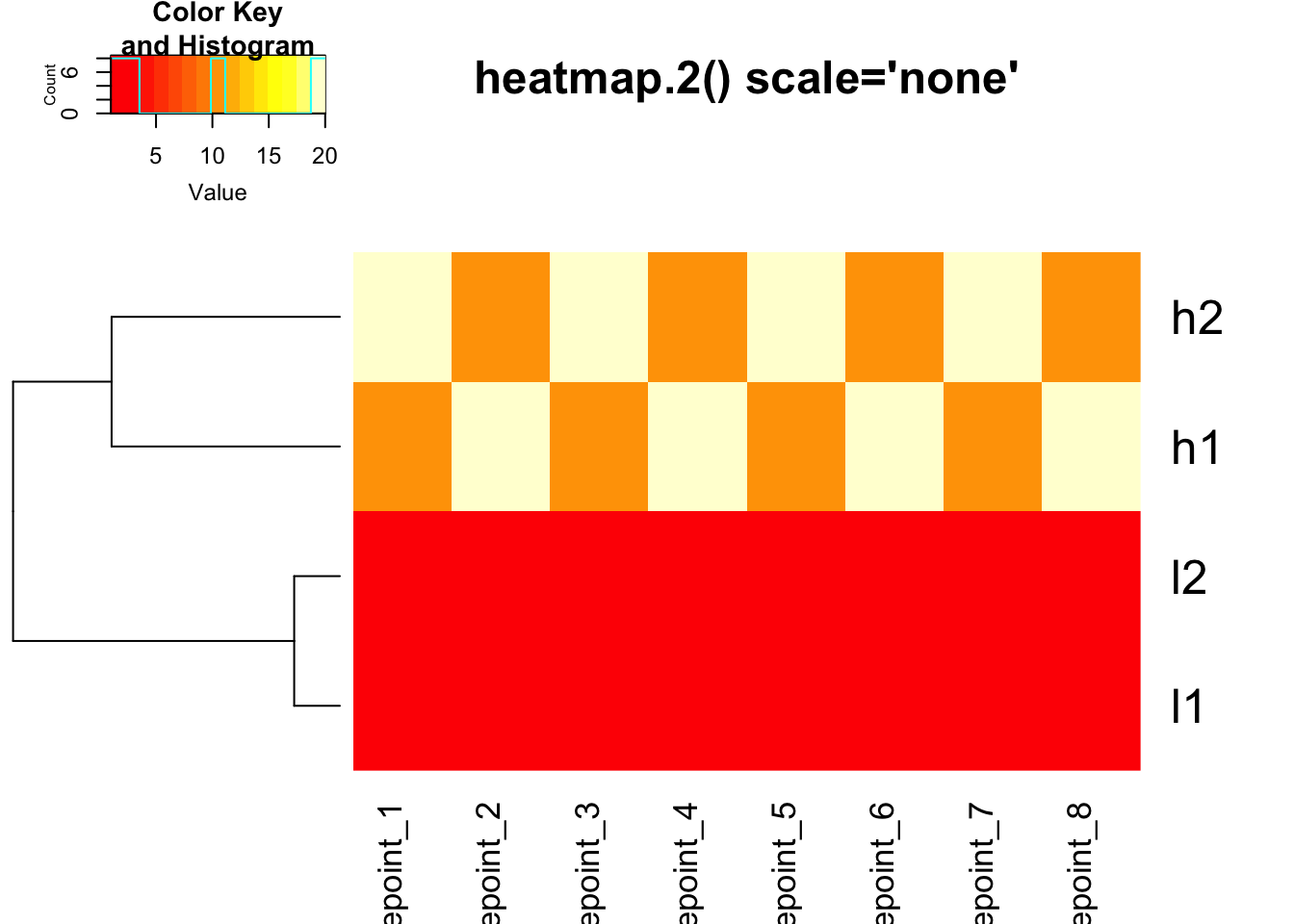

# heatmap.2 with default (no scaling)
heatmap.2(mat, trace = "none", Colv = NA, dendrogram = "row",
          scale = "none", main = "heatmap.2() scale='none'")

Past versions of unnamed-chunk-17-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

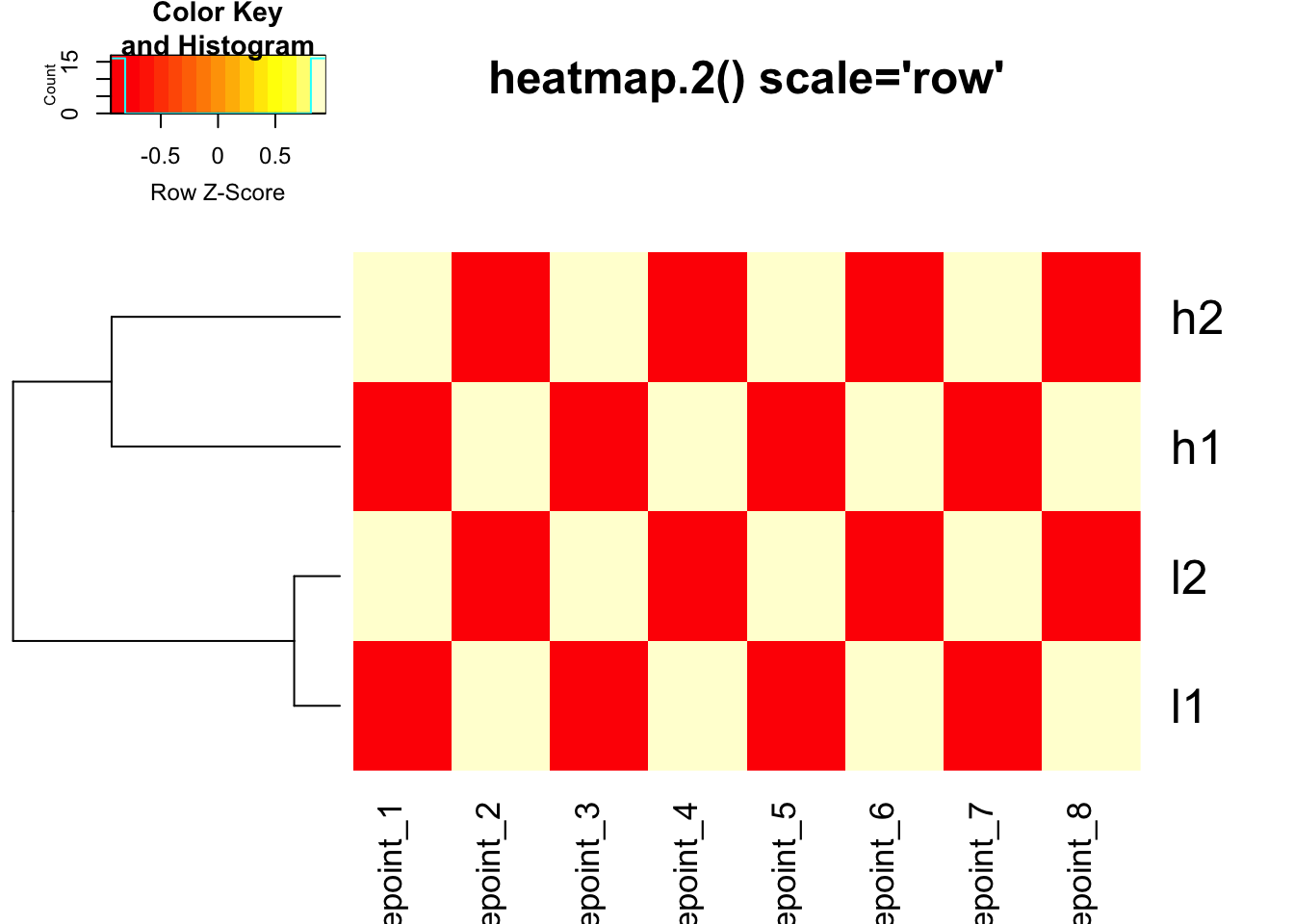

# heatmap.2 with row scaling for colors only
heatmap.2(mat, trace = "none", Colv = NA, dendrogram = "row",
          scale = "row", main = "heatmap.2() scale='row'")

Past versions of unnamed-chunk-18-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

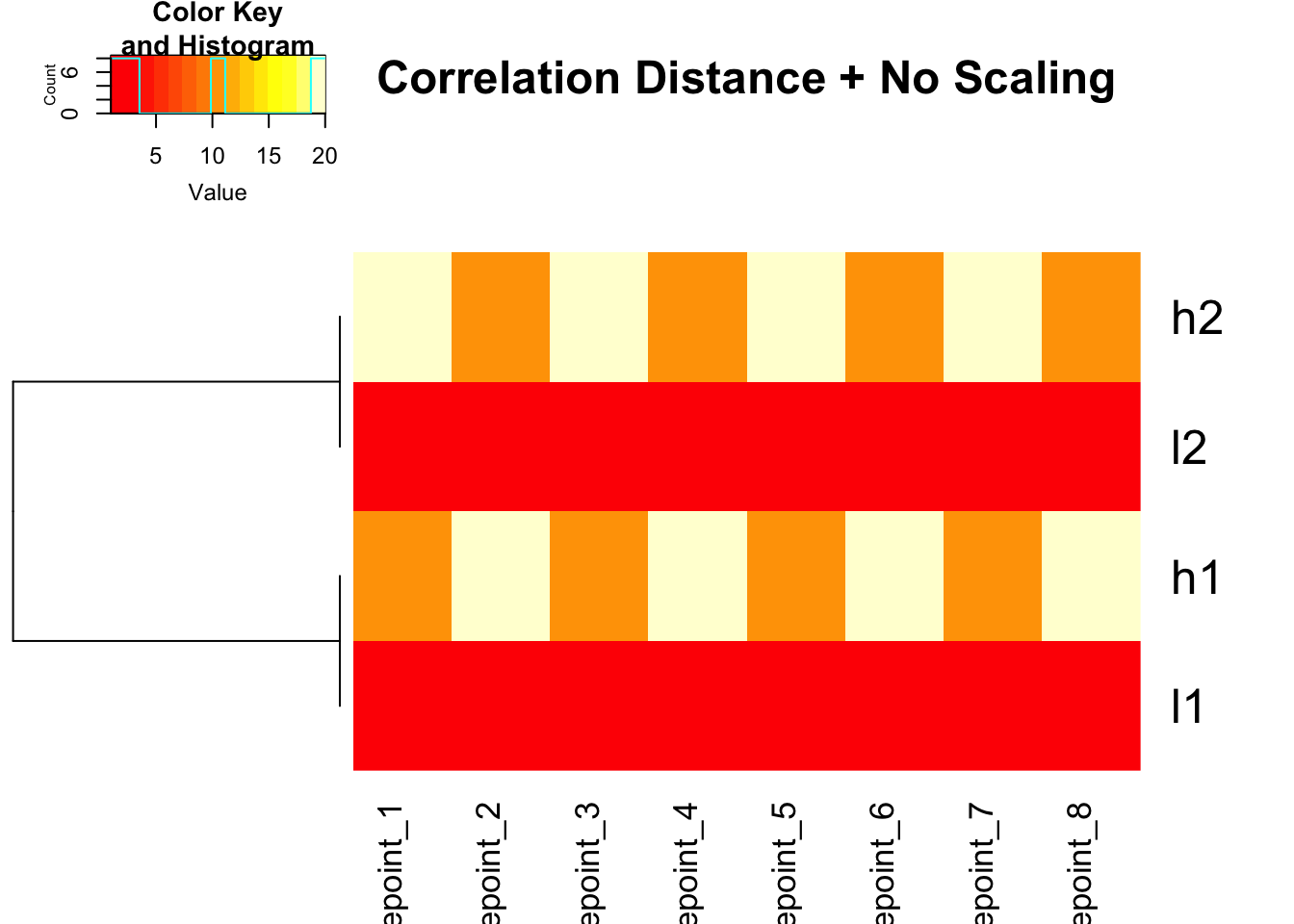

Using custom distance in heatmap.2()

# Use correlation distance with heatmap.2
heatmap.2(mat, trace = "none", Colv = NA, dendrogram = "row",
          scale = "none",
          hclust = function(x) hclust(x, method = 'complete'),
          distfun = function(x) as.dist(1 - cor(t(x))),
          main = "Correlation Distance + No Scaling")

Past versions of unnamed-chunk-19-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

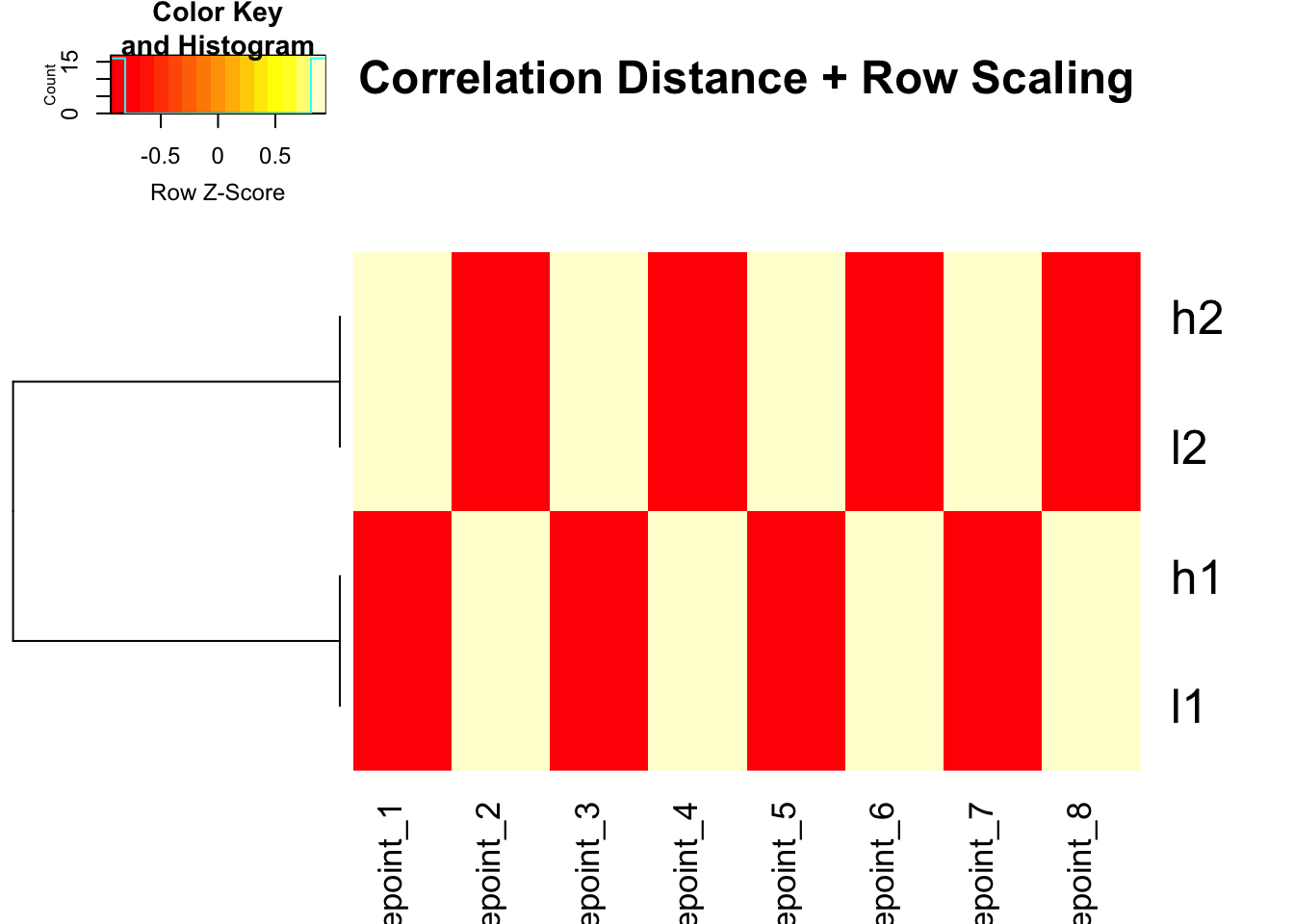

# Use correlation distance + row scaling for colors
heatmap.2(mat, trace = "none", Colv = NA, dendrogram = "row",
          scale = "row",
          hclust = function(x) hclust(x, method = 'complete'),
          distfun = function(x) as.dist(1 - cor(t(x))),
          main = "Correlation Distance + Row Scaling")

Past versions of unnamed-chunk-20-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

ComplexHeatmap: The Modern Approach

ComplexHeatmap does NOT scale by default and gives you full control:

# Using pre-scaled data with ComplexHeatmap
Heatmap(scaled_mat, cluster_columns = FALSE, name = "Pre-scaled")

Past versions of unnamed-chunk-21-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

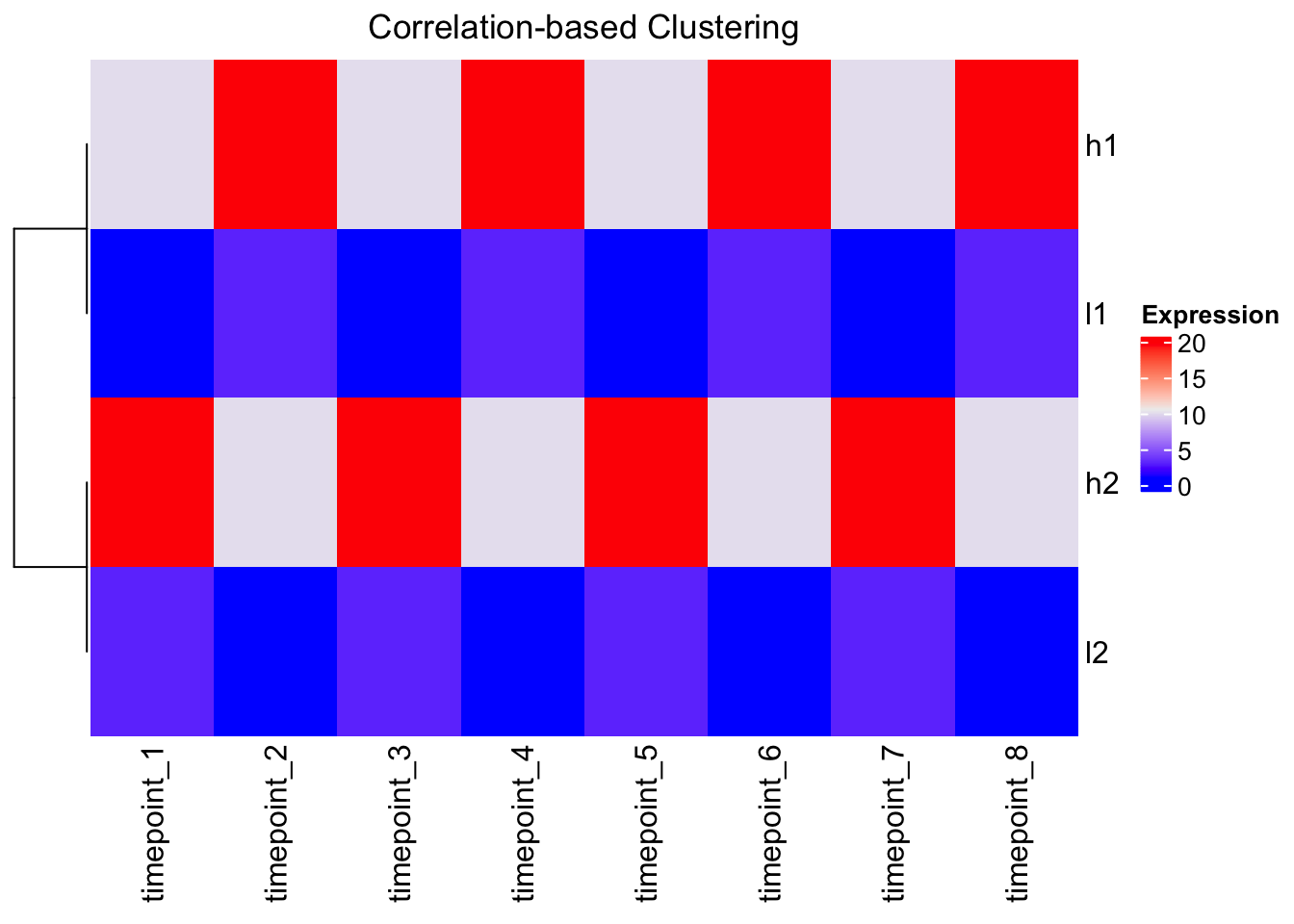

# Using correlation distance with ComplexHeatmap
Heatmap(mat,
        cluster_columns = FALSE,
        clustering_distance_rows = function(x) as.dist(1 - cor(t(x))),
        name = "Expression",
        column_title = "Correlation-based Clustering")

Past versions of unnamed-chunk-22-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

The Outlier Problem

# Add an outlier to demonstrate color mapping issues
mat_outlier <- mat
mat_outlier[1,1] <- 1000  # Extreme outlier

Heatmap(mat_outlier, cluster_columns = FALSE, name = "With Outlier")

Problem: The outlier dominates the color scale, making all other values look the same!

Solution: Custom color mapping

# Check data quantiles to inform color mapping
quantile(mat, c(0, 0.1, 0.5, 0.9, 1.0))

#>   0%  10%  50%  90% 100%
#>  1.0  1.0  6.5 20.0 20.0

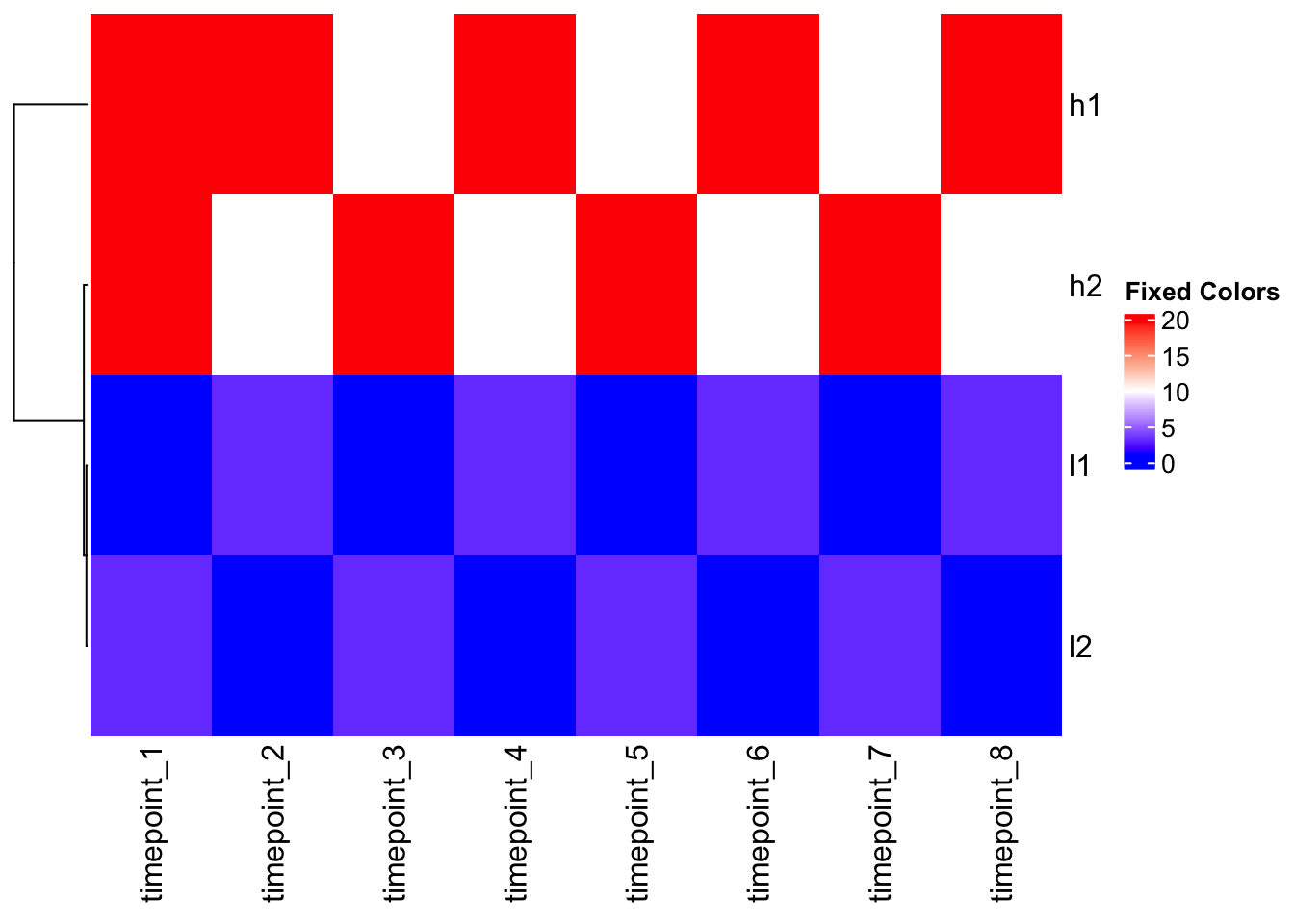

# Create custom color function based on data distribution
col_fun <- colorRamp2(c(1, 10, 20), c("blue", "white", "red"))

# Apply to outlier data
Heatmap(mat_outlier, cluster_columns = FALSE, col = col_fun, name = "Fixed Colors")

Heatmap(mat_outlier, cluster_columns = FALSE, col = col_fun, name = "Fixed Colors")

Summary: Critical Decision Points

1. Scaling Strategy (Choose ONE):

• Pre-scale your data if you want to focus on patterns rather than absolute values
• Use correlation distance if you want to preserve original scale but cluster by pattern
• Use raw data only if absolute values are meaningful for your analysis

2. Distance Measure:

• Euclidean: Good for absolute differences (default)
• Correlation: Good for pattern similarity
• Manhattan, others: Depending on data characteristics

3. Color Mapping:

• Always check your data distribution with quantile()
• Use custom color functions for outliers
• Consider whether colors should represent raw values or scaled values

4. Function Choice:

• ComplexHeatmap: Most flexible, no hidden scaling
• heatmap(): Default row scaling, good for basic use
• heatmap.2(): No default scaling, more options

Key Takeaways

1. Clustering happens BEFORE scaling in most R heatmap functions
2. The scale parameter only affects color representation, not clustering
3. Always understand your data and what you want to visualize
4. Pre-scaling or using correlation distance can reveal biological patterns hidden by scale differences
5. Color mapping can make or break data interpretation
6. Different heatmap functions have different defaults - know what they are!

Remember: Making a heatmap is easy, but making a meaningful heatmap requires understanding these nuances. Your clustering and scaling choices can completely change the biological story your heatmap tells!

Heatmap with TCGA Data: Real-world Application

Now let’s apply what we’ve learned to real cancer genomics data from The Cancer Genome Atlas (TCGA). We’ll visualize the expression of cancer-associated genes across different cancer types and samples.

Load the data

The TCGA data contains TPM (transcripts per million) normalized gene expression values for multiple cancer-associated genes across thousands of samples from 33 cancer types.

library(readr)
library(dplyr)
library(tidyr)
library(ComplexHeatmap)
library(circlize)

# Load the TCGA gene expression data (TPM values)
tcga_data <- read_csv("~/Downloads/TCGA_cancer_genes_expression.csv")

# Explore the structure
head(tcga_data)

#> # A tibble: 6 × 25
#>   ...1      TACSTD2  VTCN1   MUC1 NECTIN4 FOLH1  FOLR1 CD276   MSLN  CLDN6 ERBB2
#>   <chr>       <dbl>  <dbl>  <dbl>   <dbl> <dbl>  <dbl> <dbl>  <dbl>  <dbl> <dbl>
#> 1 43e715bf…   0.704 0      0.675   0.0862  7.21 0       52.8 0.0667 0.0970  1.88
#> 2 1a5db9fc…  25.4   0      2.02    0.0728 23.6  0.122   78.8 0.956  0.255   7.78
#> 3 93b382e4…   1.58  0      0.908   0.699   2.85 1.01   146.  0.0456 0.257   2.91
#> 4 1f39dadd…   0.270 0.0910 0.0429  0.0165  1.16 0.279   48.5 0.0315 0.247   4.91
#> 5 8c8c09b9…   0.412 0      0.115   0.0317  2.41 0.0492  42.3 0.270  0.126   1.49
#> 6 85a86b91…   4.55  4.86   0.0421  0.0683  1.01 0.0225  20.6 0.0134 0.0182 13.5
#> # ℹ 14 more variables: MUC16 <dbl>, DLL3 <dbl>, CEACAM5 <dbl>, PVR <dbl>,
#> #   EPCAM <dbl>, PROM1 <dbl>, CD24 <dbl>, EGFR <dbl>, MET <dbl>,
#> #   TNFRSF10B <dbl>, tcga.tcga_barcode <chr>,
#> #   tcga.cgc_sample_sample_type <chr>, study <chr>, sample_type <chr>

dim(tcga_data)

#> [1] 11348    25

Data preparation

The data contains: - Gene expression values (TPM) for cancer-associated genes - Sample metadata including cancer type (study) and sample type (tumor vs. normal) - 11,348 samples across 25 columns (21 genes + 4 metadata columns)

# Check the column names
colnames(tcga_data)

#>  [1] "...1"                        "TACSTD2"
#>  [3] "VTCN1"                       "MUC1"
#>  [5] "NECTIN4"                     "FOLH1"
#>  [7] "FOLR1"                       "CD276"
#>  [9] "MSLN"                        "CLDN6"
#> [11] "ERBB2"                       "MUC16"
#> [13] "DLL3"                        "CEACAM5"
#> [15] "PVR"                         "EPCAM"
#> [17] "PROM1"                       "CD24"
#> [19] "EGFR"                        "MET"
#> [21] "TNFRSF10B"                   "tcga.tcga_barcode"
#> [23] "tcga.cgc_sample_sample_type" "study"
#> [25] "sample_type"

# Check unique cancer types
unique(tcga_data$study) %>% length()

#> [1] 33

# Check sample types
table(tcga_data$sample_type)

#>
#>     cancer metastatic     normal
#>      10021        394        740

Focus on tumor samples only

Let’s filter to tumor samples and summarize expression by cancer type:

# Filter to tumor samples only
tumor_data <- tcga_data %>%
  filter(sample_type == "cancer")

# Check dimensions
dim(tumor_data)

#> [1] 10021    25

Calculate median expression per gene per cancer type

For visualization clarity, we’ll calculate the median expression of each gene within each cancer type. This reduces the dimensionality and highlights cancer-type-specific expression patterns.

# Get gene columns (exclude metadata columns)
gene_cols <- setdiff(colnames(tumor_data),
                     c("...1", "tcga.tcga_barcode", "tcga.cgc_sample_sample_type",
                       "study", "sample_type"))

# Calculate median expression per gene per cancer type
median_expr <- tumor_data %>%
  group_by(study) %>%
  summarise(across(all_of(gene_cols), median, na.rm = TRUE)) %>%
  tibble::column_to_rownames("study")

# Check the result
dim(median_expr)

#> [1] 32 20

head(median_expr[, 1:5])

#>          TACSTD2       VTCN1        MUC1     NECTIN4     FOLH1
#> ACC    0.3954876  0.00000000   0.1818273  0.03067656 2.0874243
#> BLCA 661.8630353  3.65963370  47.4768280 94.27139557 0.8555821
#> BRCA 261.0299500 53.59716929 182.3543318 44.73170660 1.6821121
#> CESC 859.9931404  2.77101295  93.1439374 85.31153260 0.6291784
#> CHOL  45.1263235 65.36620629  35.4881279 17.96765276 1.9197128
#> COAD   9.5038335  0.05293064  44.1769646  9.43587246 0.7486478

Apply log2 transformation

TPM values can span several orders of magnitude. Log transformation helps visualize patterns more clearly:

# Add pseudocount and log2 transform
# log2(TPM + 1) is common for RNA-seq data
log2_expr <- log2(median_expr + 1)

# Check the distribution
summary(log2_expr[, 1:3])

#>     TACSTD2           VTCN1              MUC1
#>  Min.   :0.1194   Min.   :0.00000   Min.   :0.241
#>  1st Qu.:1.2457   1st Qu.:0.09181   1st Qu.:1.682
#>  Median :4.0726   Median :0.43380   Median :4.802
#>  Mean   :4.7057   Mean   :1.43016   Mean   :4.267
#>  3rd Qu.:8.0418   3rd Qu.:2.23702   3rd Qu.:5.718
#>  Max.   :9.7499   Max.   :6.05238   Max.   :8.482

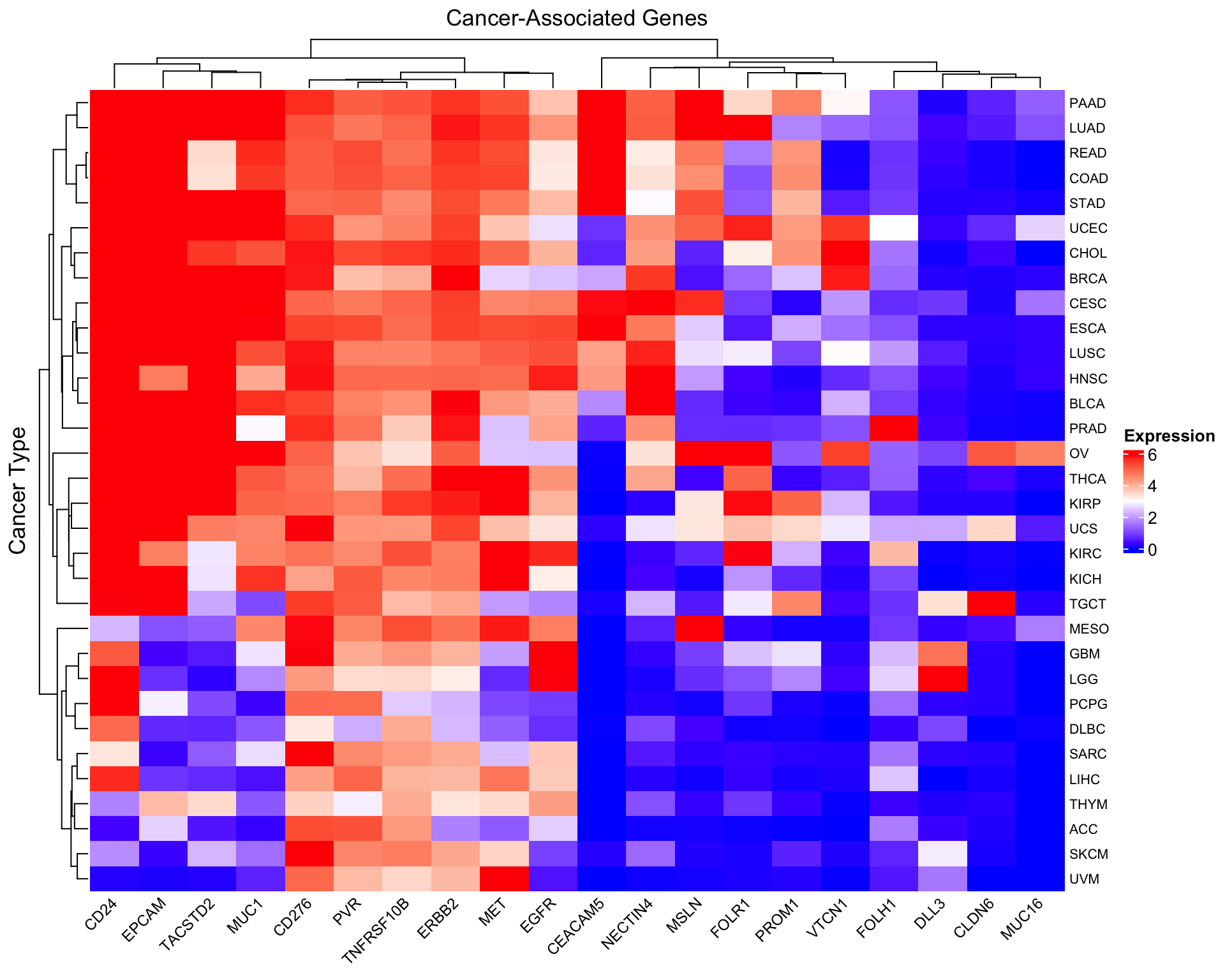

Create the heatmap

# Create a color palette
col_fun <- colorRamp2(c(0, 3, 6), c("blue", "white", "red"))

# Basic heatmap of log2(TPM+1) values
Heatmap(as.matrix(log2_expr),
        name = "log2(TPM+1)",
        col = col_fun,
        column_title = "Cancer-Associated Genes",
        row_title = "Cancer Type",
        row_names_gp = gpar(fontsize = 8),
        column_names_gp = gpar(fontsize = 9),
        column_names_rot = 45,
        heatmap_legend_param = list(
          title = "Expression",
          direction = "vertical"
        ))

Past versions of unnamed-chunk-31-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

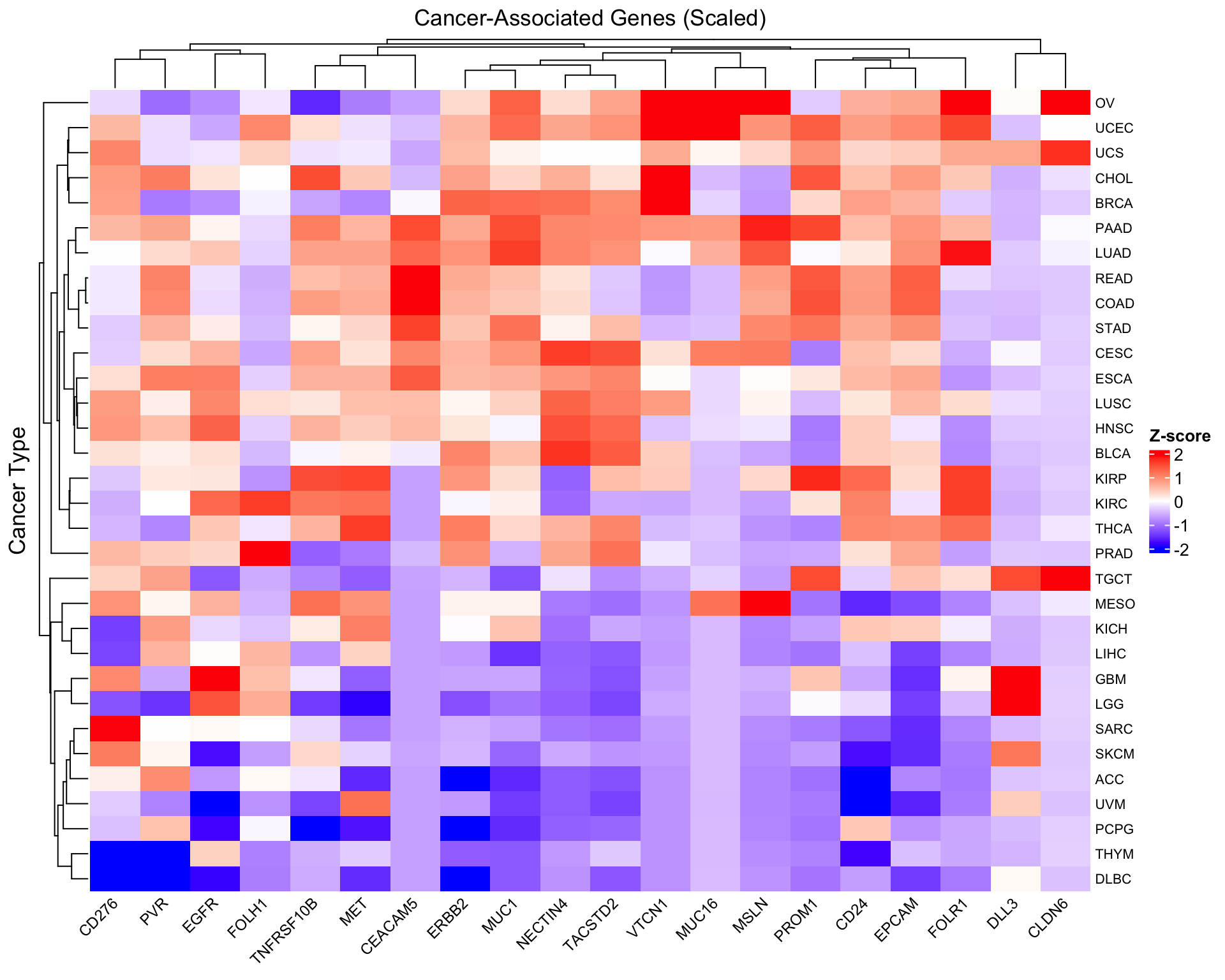

Scale by gene for pattern comparison

To compare expression patterns across genes with different baseline levels, we can scale each gene (column):

# Scale columns (genes) - center and scale to unit variance
scaled_expr <- scale(as.matrix(log2_expr))

# Create scaled heatmap
Heatmap(scaled_expr,
        name = "Z-score",
        col = colorRamp2(c(-2, 0, 2), c("blue", "white", "red")),
        column_title = "Cancer-Associated Genes (Scaled)",
        row_title = "Cancer Type",
        row_names_gp = gpar(fontsize = 8),
        column_names_gp = gpar(fontsize = 9),
        column_names_rot = 45,
        heatmap_legend_param = list(
          title = "Z-score",
          direction = "vertical"
        ))

Past versions of unnamed-chunk-32-1.png

Version	Author	Date
bf3d061	crazyhottommy	2025-11-02

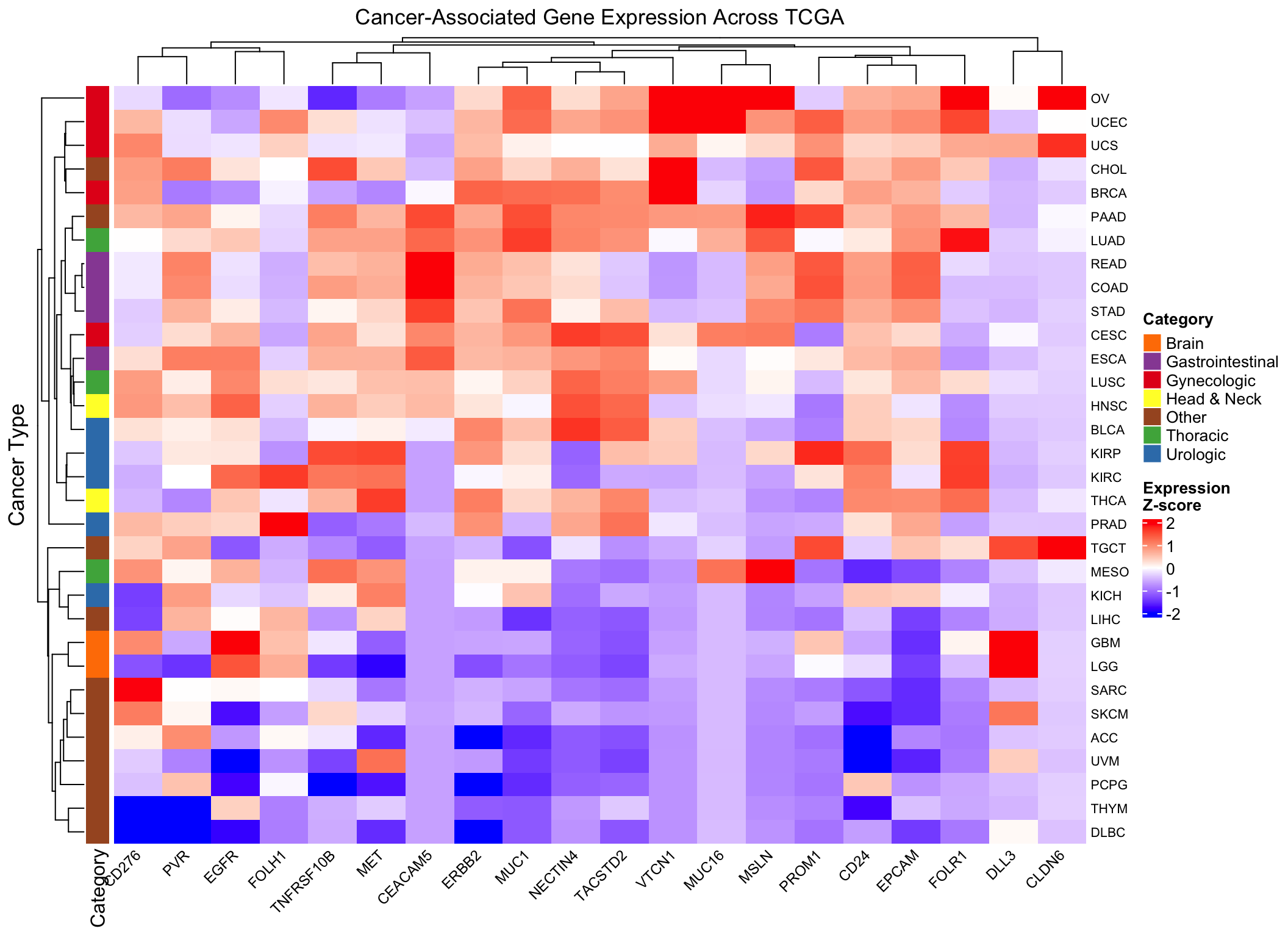

Add annotations for biological context

Let’s annotate the heatmap with cancer categories to help interpretation:

# Define broad cancer categories (simplified example)
# You can customize this based on your biological knowledge
cancer_categories <- data.frame(
  study = rownames(log2_expr),
  category = case_when(
    grepl("BRCA|OV|UCEC|UCS|CESC", rownames(log2_expr)) ~ "Gynecologic",
    grepl("PRAD|BLCA|KIRC|KIRP|KICH", rownames(log2_expr)) ~ "Urologic",
    grepl("LUAD|LUSC|MESO", rownames(log2_expr)) ~ "Thoracic",
    grepl("COAD|READ|STAD|ESCA", rownames(log2_expr)) ~ "Gastrointestinal",
    grepl("GBM|LGG", rownames(log2_expr)) ~ "Brain",
    grepl("HNSC|THCA", rownames(log2_expr)) ~ "Head & Neck",
    TRUE ~ "Other"
  )
)

# Create row annotation
row_ha <- rowAnnotation(
  Category = cancer_categories$category,
  col = list(Category = c(
    "Gynecologic" = "#E41A1C",
    "Urologic" = "#377EB8",
    "Thoracic" = "#4DAF4A",
    "Gastrointestinal" = "#984EA3",
    "Brain" = "#FF7F00",
    "Head & Neck" = "#FFFF33",
    "Other" = "#A65628"
  ))
)

# Enhanced heatmap with annotation
Heatmap(scaled_expr,
        name = "Z-score",
        col = colorRamp2(c(-2, 0, 2), c("blue", "white", "red")),
        column_title = "Cancer-Associated Gene Expression Across TCGA",
        row_title = "Cancer Type",
        left_annotation = row_ha,
        row_names_gp = gpar(fontsize = 8),
        column_names_gp = gpar(fontsize = 9),
        column_names_rot = 45,
        heatmap_legend_param = list(
          title = "Expression\nZ-score",
          direction = "vertical"
        ))

Biological validation examples

Let’s verify some known biology in our heatmap:

# FOLH1 (prostate-specific membrane antigen) - should be high in prostate cancer
prostate_folh1 <- tumor_data %>%
  filter(study == "PRAD") %>%
  summarise(median_FOLH1 = median(FOLH1, na.rm = TRUE))

# MSLN (mesothelin) - should be high in mesothelioma
meso_msln <- tumor_data %>%
  filter(study == "MESO") %>%
  summarise(median_MSLN = median(MSLN, na.rm = TRUE))

# ERBB2 (HER2) - often amplified in breast cancer
breast_erbb2 <- tumor_data %>%
  filter(study == "BRCA") %>%
  summarise(median_ERBB2 = median(ERBB2, na.rm = TRUE))

cat("FOLH1 in Prostate Cancer:", prostate_folh1$median_FOLH1, "\n")

#> FOLH1 in Prostate Cancer: 242.0992

cat("MSLN in Mesothelioma:", meso_msln$median_MSLN, "\n")

#> MSLN in Mesothelioma: 549.3863

cat("ERBB2 in Breast Cancer:", breast_erbb2$median_ERBB2, "\n")

#> ERBB2 in Breast Cancer: 76.24836

Key insights from TCGA heatmap

1. Hierarchical clustering reveals cancer types with similar gene expression signatures
2. Gene-specific patterns emerge: some genes are broadly expressed, others are cancer-type specific
3. Scaling matters: The unscaled heatmap shows absolute expression levels, while the scaled version reveals relative patterns
4. Biological validation: Known gene-cancer associations (FOLH1-prostate, MSLN-mesothelioma) should be visible

Practical considerations for TCGA data

• TPM normalization: Already performed, allows cross-sample comparison
• Log transformation: Essential for visualizing RNA-seq data due to wide dynamic range
• Sample size variation: Different cancer types have different numbers of samples (affects median stability)
• Tumor heterogeneity: Even within a cancer type, expression varies widely between samples
• Clinical context: Always validate computational findings with biological knowledge

Pro tip: When working with large expression matrices like TCGA, always start with summary statistics (median/mean per group) before attempting to visualize individual samples. This makes patterns more interpretable and reduces computational burden.

Session information

sessionInfo()

#> R version 4.4.1 (2024-06-14)
#> Platform: aarch64-apple-darwin20
#> Running under: macOS Sonoma 14.1
#>
#> Matrix products: default
#> BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
#> LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0
#>
#> locale:
#> [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#>
#> time zone: America/New_York
#> tzcode source: internal
#>
#> attached base packages:
#> [1] grid      stats     graphics  grDevices utils     datasets  methods
#> [8] base
#>
#> other attached packages:
#> [1] tidyr_1.3.1           dplyr_1.1.4           readr_2.1.5
#> [4] circlize_0.4.16       gplots_3.1.3.1        ComplexHeatmap_2.20.0
#> [7] workflowr_1.7.1
#>
#> loaded via a namespace (and not attached):
#>  [1] shape_1.4.6.1       rjson_0.2.22        xfun_0.52
#>  [4] bslib_0.8.0         GlobalOptions_0.1.2 caTools_1.18.2
#>  [7] processx_3.8.4      tzdb_0.4.0          callr_3.7.6
#> [10] generics_0.1.3      Cairo_1.6-2         vctrs_0.6.5
#> [13] tools_4.4.1         ps_1.7.7            bitops_1.0-8
#> [16] stats4_4.4.1        parallel_4.4.1      tibble_3.2.1
#> [19] fansi_1.0.6         highr_0.11          cluster_2.1.6
#> [22] pkgconfig_2.0.3     KernSmooth_2.23-24  RColorBrewer_1.1-3
#> [25] S4Vectors_0.42.1    lifecycle_1.0.4     compiler_4.4.1
#> [28] stringr_1.5.1       git2r_0.35.0        getPass_0.2-4
#> [31] codetools_0.2-20    clue_0.3-65         httpuv_1.6.15
#> [34] htmltools_0.5.8.1   sass_0.4.9          yaml_2.3.10
#> [37] later_1.3.2         pillar_1.9.0        crayon_1.5.3
#> [40] jquerylib_0.1.4     whisker_0.4.1       cachem_1.1.0
#> [43] magick_2.8.5        iterators_1.0.14    foreach_1.5.2
#> [46] gtools_3.9.5        tidyselect_1.2.1    digest_0.6.36
#> [49] stringi_1.8.4       purrr_1.0.2         rprojroot_2.0.4
#> [52] fastmap_1.2.0       colorspace_2.1-1    cli_3.6.3
#> [55] magrittr_2.0.3      utf8_1.2.4          withr_3.0.0
#> [58] promises_1.3.0      bit64_4.0.5         rmarkdown_2.27
#> [61] httr_1.4.7          matrixStats_1.3.0   bit_4.0.5
#> [64] hms_1.1.3           png_0.1-8           GetoptLong_1.0.5
#> [67] evaluate_0.24.0     knitr_1.48          IRanges_2.38.1
#> [70] doParallel_1.0.17   rlang_1.1.4         Rcpp_1.0.13
#> [73] glue_1.8.0          BiocGenerics_0.50.0 vroom_1.6.5
#> [76] rstudioapi_0.16.0   jsonlite_1.8.8      R6_2.5.1
#> [79] fs_1.6.4
